RNA inverse design · Reinforcement learning

MORAD

Reinforcement Learning with Multi-Objective Rewards for RNA Inverse Design

Jixin Tang^* Ji Guo^* Jun Zhao^†

Fudan University

^*Equal contribution · ^†Corresponding author

Paper coming soon Code Model Data BibTeX

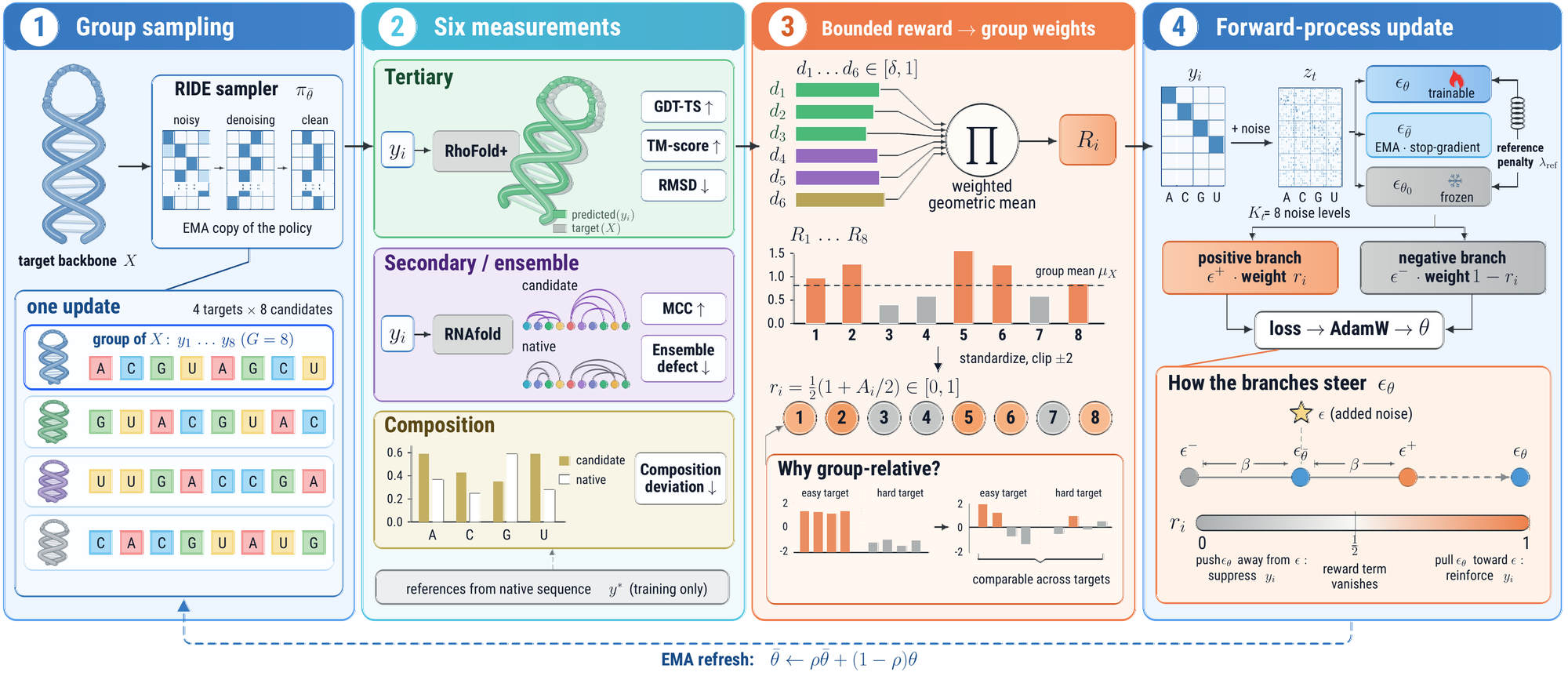

MORAD training loop. Backbone-conditioned sampling produces candidate sequences. Three evaluation channels provide the six-component reward and group-relative weights. Forward-noised candidates train the shared policy under a frozen-reference constraint; EMA feedback refreshes the sampler.

+16.0%

GDT-TS

0.3300 → 0.3827

+19.4%

Pairing MCC

0.6110 → 0.7295

−27.5%

Normalized ensemble defect

0.3906 → 0.2830

10 / 11

Metrics improved

over a tertiary-only reward

Abstract

We introduce MORAD, an online reinforcement learning framework for backbone-conditioned RNA diffusion models that trains a single shared policy across diverse target backbones. Structure-conditioned RNA inverse design seeks nucleotide sequences compatible with a target three-dimensional backbone, yet existing reinforcement learning approaches either optimize a separate policy for each target backbone or rely on offline preference optimization, leaving online post-training of a reusable backbone-conditioned model largely unexplored. MORAD combines backbone-conditioned group sampling, group-relative reward normalization, and a forward-process diffusion objective. Beyond existing RL rewards that primarily target tertiary structural quality, MORAD jointly optimizes six measurements spanning tertiary geometry, base pairing, ensemble behavior, and sequence composition. To aggregate these heterogeneous objectives despite differences in scale and optimization direction, MORAD maps each measurement to a bounded desirability score and combines them with a weighted geometric mean. Compared with a tertiary-structure-only reward, this multi-objective formulation improves 10 of the 11 evaluation metrics that have a preferred direction. Applied to pretrained RIDE, MORAD improves GDT-TS by 16.0% (from 0.3300 to 0.3827) and pairing MCC by 19.4% (from 0.6110 to 0.7295), while reducing normalized ensemble defect by 27.5% (from 0.3906 to 0.2830). On the test set, MORAD outperforms RiboDiffusion, gRNAde, and RDesign across tertiary structural accuracy, secondary-structure pairing, and thermodynamic quality, establishing a new state of the art in structure-conditioned RNA inverse design.

Method

MORAD post-trains one backbone-conditioned diffusion policy across many target backbones, so the trained model designs sequences for a new backbone directly at inference, with no per-target optimization.

Shared-policy online post-training

Backbone-conditioned group sampling, group-relative reward normalization and a forward-process diffusion objective, applied to the pretrained RIDE model.

Six-objective reward

Tertiary geometry (GDT-TS, TM-score, RMSD), base pairing (MCC), ensemble behavior (normalized ensemble defect) and sequence composition.

Bounded desirability, geometric mean

Each measurement is mapped to a bounded desirability score and the scores are combined with a weighted geometric mean, so no single objective dominates.

The MORAD reward

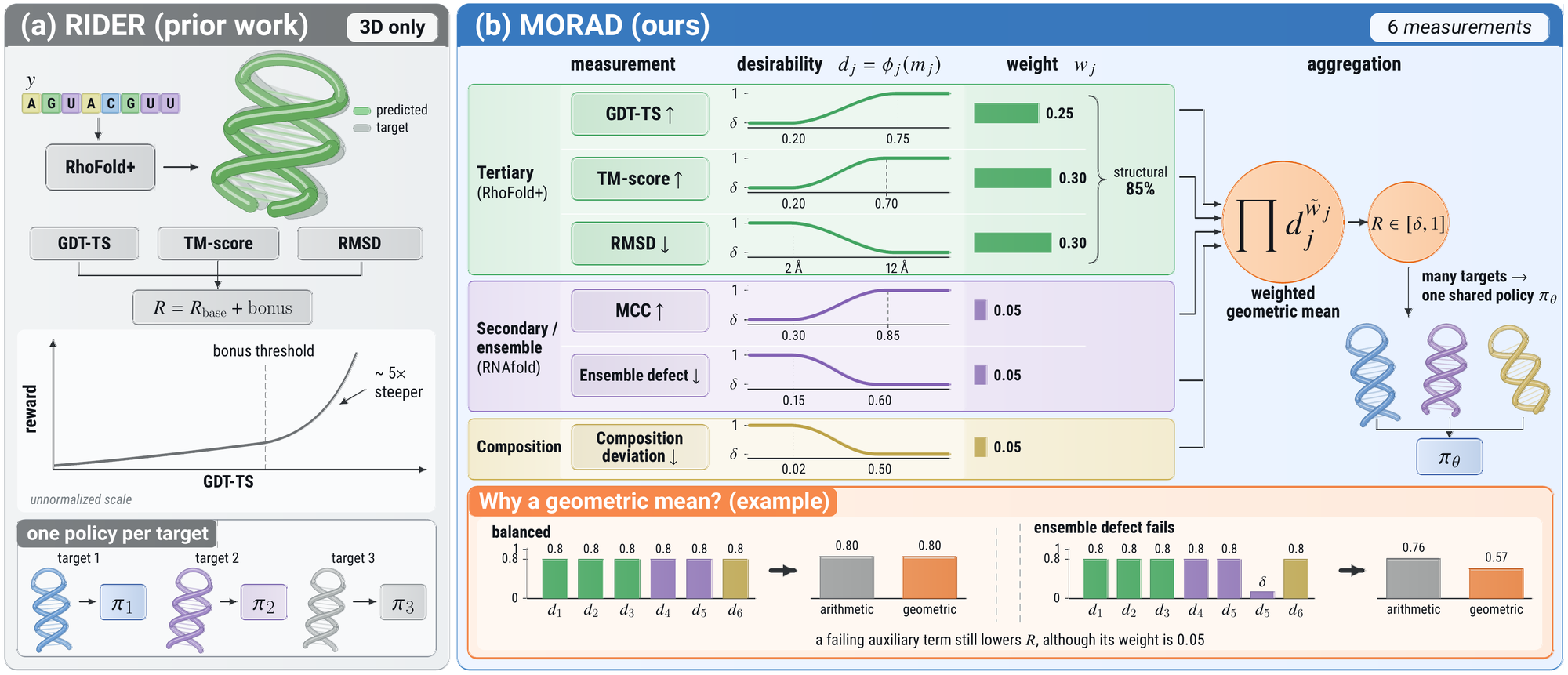

**RIDER and MORAD reward construction.** RIDER scores tertiary structural consistency. MORAD combines three tertiary measurements, pairing agreement, normalized ensemble defect and composition deviation; each desirability score lies in [δ, 1].

1 · Normalize

$$u_j=\mathrm{clip}\Big(\tfrac{m_j-a_j}{b_j-a_j},\,0,\,1\Big)$$

2 · Desirability

$$d_j=\max\Big(\delta,\,\tfrac{1-\cos(\pi u_j)}{2}\Big)$$

3 · Aggregate

$$R=\exp\Big(\textstyle\sum_{j\in\mathcal J}\tilde w_j\log d_j\Big)$$

Each measurement $m_j$ runs between a low anchor $a_j$ and a high anchor $b_j$; $\tilde w_j = w_j / \sum_{k\in\mathcal J} w_k$ normalizes the weights over the available measurements $\mathcal J$.

Measurement	$a_j$	$b_j$	$w_j$
GDT-TS	0.20	0.75	0.25
TM-score	0.20	0.70	0.30
RMSD (Å)	12.0	2.0	0.30
Secondary-structure MCC	0.30	0.85	0.05
Ensemble defect / nucleotide	0.60	0.15	0.05
Composition deviation	0.50	0.02	0.05

Results

All models are evaluated on the same 153 test targets. MORAD is the policy after update 390; best values are in bold.

Candidate 0 of each target, structures predicted with RhoFold+.

Model	GDT-TS ↑	TM (C4′) ↑	RMSD (Å) ↓	TM (C1′) ↑	Success ↑	Recovery ↑	lDDT (C4′) ↑	pLDDT ↑	Coarse clash ↓
RiboDiffusion	0.3132	0.2839	10.9215	0.3613	0.2549	0.5165	0.6174	0.6937	73.5383
gRNAde (T=0.1)	0.3591	0.3179	8.8374	0.3642	0.2484	0.5115	0.6607	0.6482	23.7261
RDesign	0.3291	0.2902	10.3441	0.3392	0.2549	0.4720	0.6368	0.6202	40.4457
RIDE	0.3300	0.2841	9.7199	0.3538	0.2484	0.5039	0.6622	0.6671	22.7503
MORAD	0.3827	0.3400	7.9196	0.3855	0.3007	0.5056	0.6774	0.6726	11.9438

Candidate 0; EternaFold predictions compared with base pairs extracted from the native 3D structures.

Model	Precision ↑	Recall ↑	F1 ↑	MCC ↑
RiboDiffusion	0.3563	0.3074	0.3212	0.3267
gRNAde (T=0.1)	0.7276	0.6099	0.6482	0.6734
RDesign	0.7084	0.6110	0.6462	0.6566
RIDE	0.6472	0.5717	0.5939	0.6110
MORAD	0.7824	0.6816	0.7226	0.7295

153 targets, ViennaRNA.

Model	MFE ∼	EFE ∼	NED ↓	PE ↓	MFEfreq ↑
RiboDiffusion	-21.716	-22.847	0.6056	0.4284	0.2980
gRNAde (T=0.1)	-28.092	-28.918	0.3458	0.2652	0.4289
gRNAde (T=0.8)	-25.186	-26.212	0.3830	0.3260	0.3266
RDesign	-28.863	-29.708	0.3349	0.2775	0.3961
RIDE	-23.614	-24.643	0.3906	0.3059	0.3350
MORAD	-30.149	-30.937	0.2830	0.2102	0.4402

MFE / EFE: minimum and ensemble free energy (kcal/mol), shown for context. NED: normalized ensemble defect. PE: positional entropy. MFEfreq: probability of the minimum-free-energy structure.

Two policies post-trained from the same pretrained RIDE with the same data, optimizer and schedule; only the reward differs.

Measurement	RIDE	+ Structural reward	+ MORAD reward
GDT-TS ↑	0.3300	0.3627	0.3694
TM-score ↑	0.2841	0.3194	0.3358
RMSD (Å) ↓	9.720	8.369	8.207
C1′ TM ↑	0.3538	0.3818	0.3919
MCC ↑	0.6208	0.6612	0.6978
F1 ↑	0.6103	0.6568	0.6901
ED (nt) ↓	29.08	26.85	24.27
ED/nt ↓	0.3872	0.3569	0.3256
Recovery ↑	0.5033	0.5097	0.5124
H_pair ↓	0.3249	0.2851	0.2800
p_MFE ↑	0.3281	0.3880	0.3847
MFE (kcal/mol)	-23.77	-29.81	-26.49
GC fraction	0.5304	0.5912	0.4970
Hamming diversity	0.2971	0.2224	0.2607

MFE, GC fraction and within-target Hamming diversity are shown for context.

Training dynamics

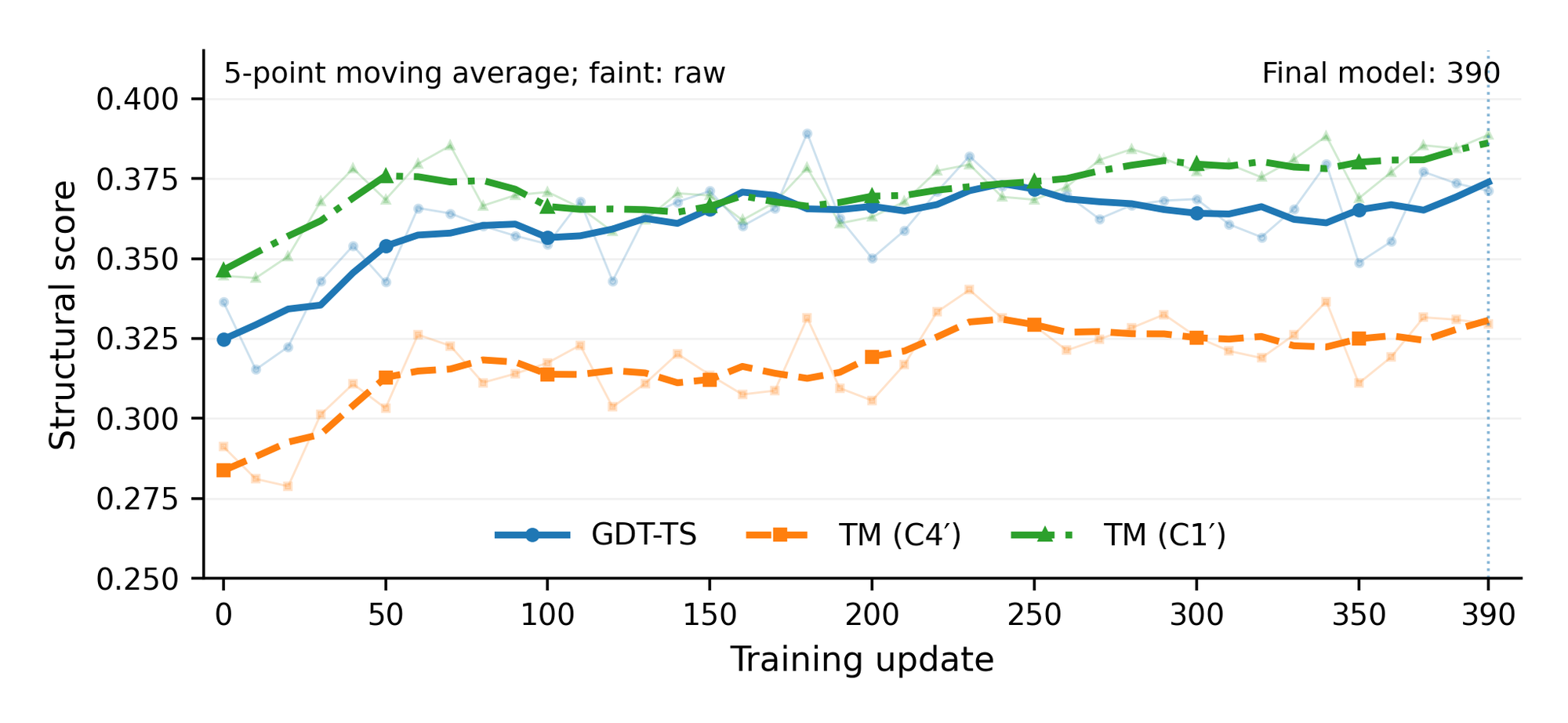

Structural scores over training updates 0 to 390 — **Structural-score trends over all 40 evaluations during training** (updates 0–390). Thick lines show a centered five-point moving average; faint traces show the raw scores, with one sampled candidate per target.

Data

527

Training targets

27–258 nt · median 75

153

Test targets

15–186 nt · median 65

The test set is built separately from the training set. It comprises 71 RNA3DB entries, drawn from RNA3DB components that contain no training target, and 82 entries curated from the RCSB PDB. No test sequence exactly matches a training sequence. Both sets are released as MORAD-Targets on Hugging Face.

Get started

The repository contains the full training and evaluation code, configuration files for every reported run, and scripts that regenerate each table and figure of the paper. Training takes about 2 hours on 4 × RTX 3090; evaluation runs on a single GPU. Step-by-step instructions are in the README.

git clone https://github.com/Gabrile166/MORAD.git && cd MORAD
bash scripts/setup_third_party.sh       # RhoFold+, US-align, EternaFold
# create the two conda environments, see docs/INSTALL.md
bash scripts/download_assets.sh         # RIDE, RhoFold+, MORAD-RIDE, MORAD-Targets
bash scripts/evaluate_test153.sh morad  # evaluate on the 153 test targets
bash scripts/train_morad.sh             # train from pretrained RIDE (4 GPUs, ~2 h)

CodeTraining, evaluation and reproduction scripts

MORAD-RIDEThe released model, post-trained from pretrained RIDE

MORAD-Targets527 training and 153 test targets

Citation

@misc{tang2026morad,
  title  = {{MORAD}: Reinforcement Learning with Multi-Objective Rewards for {RNA} Inverse Design},
  author = {Tang, Jixin and Guo, Ji and Zhao, Jun},
  year   = {2026}
}
